pyvoro2

pyvoro2 is a scientific Python package for computing 2D and 3D Voronoi and power/Laguerre tessellations, with particular support for periodic topology and inverse fitting of power weights from partial geometric data.

v0.7.0 documentation: this site describes the v0.7.0 transition release, distributed through the v0.7.0 Git tag and PyPI. The archived v0.6.3 release remains the software baseline cited by the current separator-inverse manuscript. By maintainer decision, v0.7.0 has no GitHub Release or Zenodo record; the next full GitHub/Zenodo archival release is planned for v0.8.0.

v0.7.0 provides:

• standard Voronoi tessellations;
• power/Laguerre tessellations directly from mathematical weights, with the existing radius representation retained;
• a dedicated pyvoro2.planar namespace for 2D rectangular domains;
• bounded, partially periodic, and triclinic periodic 3D domains;
• explicit periodic neighbor-image shifts;
• diagnostics, validation, topology normalization, and visualization helpers;
• separator-based inverse fitting in 2D and 3D, including graph/connectivity diagnostics, hard-constraint witnesses, realized-boundary matching, and an optional realization-aware active-set loop.

The package is evolving toward a stable architecture for forward and inverse weighted tessellations. v0.8 is a cleanup-only compatibility-removal release. Prescribed cell measures move to v0.9 and mixed separator-plus-measure fitting to v0.10; none of those later capabilities is part of v0.7.

pyvoro2 is designed to be explicit and predictable:

• it vendors and wraps upstream Voro++ sources, including a small numeric robustness fix already accepted upstream for power/Laguerre pruning;
• 3D and planar APIs remain separate where their backends and domain support differ;
• power weights are the mathematical quantities, while Voro++ radii are a backend representation;
• algebraic inverse fit and realized geometry are reported as separate layers;
• numerical and topological failure modes are exposed through diagnostics rather than hidden fallback.

License note: pyvoro2-authored code is released under LGPLv3+ starting with version 0.6.0. Earlier versions were released under MIT. Vendored third-party code remains under its own licenses.

Quickstart

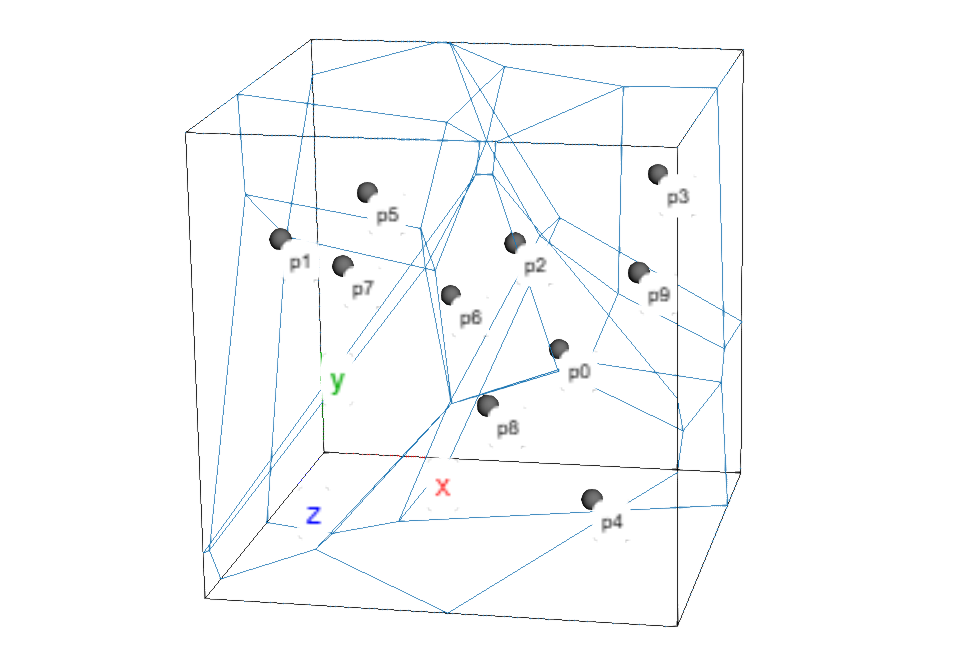

1) Standard Voronoi in a 3D box

For 3D visualization, install the optional dependency with pip install "pyvoro2[viz]".

import numpy as np
import pyvoro2 as pv
from pyvoro2.viz3d import view_tessellation

points = np.random.default_rng(0).uniform(-1.5, 1.5, size=(10, 3))
box = pv.Box(((-2, 2), (-2, 2), (-2, 2)))
result = pv.compute(points, domain=box, mode='standard')

view_tessellation(
    result.cells,
    domain=box,
    show_vertices=False,
)

2) Planar periodic workflow

import numpy as np
import pyvoro2.planar as pv2

points2d = np.array([
    [0.2, 0.2],
    [0.8, 0.25],
    [0.4, 0.8],
], dtype=float)

cell2d = pv2.RectangularCell(
    ((0.0, 1.0), (0.0, 1.0)),
    periodic=(True, True),
)
result2d = pv2.compute(
    points2d,
    domain=cell2d,
    return_diagnostics=True,
    normalize='topology',
)

diagnostics2d = result2d.require_tessellation_diagnostics()
topology2d = result2d.require_normalized_topology()

3) Power/Laguerre tessellation

The forward compute(...) APIs accept mathematical power weights directly:

weights = np.linspace(-0.2, 0.2, len(points))

result = pv.compute(
    points,
    domain=box,
    mode='power',
    weights=weights,
    include_empty=True,
)

The power function is ||x - p_i||^2 - w_i: weights have squared-length units, may be negative, and are converted to non-negative backend radii using one common global shift. Adding the same constant to every weight leaves the complete diagram unchanged. Existing radii= calls remain available, but the resulting length-unit radii are a non-unique backend representation rather than necessarily physical radii. Supply exactly one of weights= or radii= in power mode. Finite representability is necessary for conversion but does not guarantee a numerically resolvable native tessellation. Voro++ evaluates radical geometry with binary64 squared-radius arithmetic, so very large absolute radii**2 values or genuine weight ranges relative to squared coordinate/domain scales can lose geometric resolution. There is no universal safe cutoff: the onset depends on scale, geometry, platform, and compiler, and periodic power tessellations are a particularly sensitive regime. See Power diagrams for the precise distinction.

4) Periodic crystal cell with neighbor image shifts

cell = pv.PeriodicCell(
    vectors=(
        (10.0, 0.0, 0.0),
        (2.0,  9.0, 0.0),
        (1.0,  0.5, 8.0),
    )
)

result = pv.compute(points, domain=cell, return_face_shifts=True)

# result.require_boundaries() returns faces aligned with input-site order.
# Each face can include:
#   adjacent_cell  (neighbor site id)
#   adjacent_shift (which periodic image produced the face)

5) Fit weights from separator observations

import pyvoro2.inverse as inverse
import pyvoro2.inverse.separator as separator

points_pair = np.array([
    [0.0, 0.0, 0.0],
    [2.0, 0.0, 0.0],
])
pair_box = pv.Box(((-5, 5), (-5, 5), (-5, 5)))

observations = inverse.resolve_separator_observations(
    points_pair,
    [(0, 1, 0.25)],
    measurement='fraction',
    domain=pair_box,
)

fit = inverse.fit_weights_from_separators(
    points_pair,
    observations,
    model=separator.FitModel(mismatch=separator.SquaredLoss()),
)

The small pyvoro2.inverse surface is the normal fixed-observation route. Advanced models, realized-boundary checks, reports, and the experimental active-set workflow are available explicitly from pyvoro2.inverse.separator.

Numerical safety notes

Voro++ uses fixed absolute tolerances internally, including a hard near-duplicate check around approximately 1e-5 in container distance units. Very small or very large coordinate systems can therefore cause process termination inside the backend or loss of geometric accuracy.

pyvoro2 does not silently rescale coordinates. Rescale explicitly when using unusual units.

A Python-side near-duplicate precheck can run before the native call:

result = pv.compute(points, domain=cell, duplicate_check='raise')

For stricter post-hoc checks, see:

• pyvoro2.validate_tessellation(..., level='strict');
• pyvoro2.validate_normalized_topology(..., level='strict');
• pyvoro2.planar.validate_tessellation(..., level='strict');
• pyvoro2.planar.validate_normalized_topology(..., level='strict').

The vendored Voro++ snapshot includes the upstream robustness fix for radical pruning in power mode. This avoids rare cross-platform cases where fully periodic power tessellations could produce a non-reciprocal face/neighbor graph under aggressive floating-point code generation.

Why use pyvoro2?

Voro++ is fast and mature, but its low-level C++ interface does not provide all of the Python-side contracts needed in scientific workflows. pyvoro2 adds:

• triclinic periodic cells and coordinate mapping in 3D;
• partially periodic orthorhombic cells for slabs and wires;
• explicit planar support through pyvoro2.planar;
• periodic image-labelled faces and edges for graph construction;
• diagnostics and normalization for reproducible topology;
• owner lookup with locate(...);
• non-inserting probe cells with ghost_cells(...);
• separator-based inverse fitting with inspectable graph, feasibility, realization, and active-set diagnostics.

Documentation overview

Section	What it contains
Choosing an API	Preferred forward and inverse entry points, lifecycle status, result layers, and the static scalability contract.
Concepts	A concise user introduction to Voronoi and power/Laguerre tessellations.
Glossary	Power weights, backend radii, gauge, separator observations, realization, and active-set terminology.
Domains (3D)	Box, OrthorhombicCell, and PeriodicCell.
Planar (2D)	The planar namespace, rectangular periodicity, diagnostics, normalization, and plotting.
Operations	Forward tessellation, owner lookup, and ghost-cell workflows.
Topology and graphs	Periodic image-labelled adjacency and normalized topology.
Separator fitting	Current inverse API, result diagnostics, realization matching, and active-set refinement.
v0.7 migration	Exact v0.6.3-to-v0.7 changes and the fixed v0.8 removal horizon.
Theory	API-independent definitions of power diagrams, weights, gauge, and separator inversion.
Development	Architecture, workflow, documentation conventions, release plans, API lifecycle, and decision records.
Visualization	Optional py3Dmol and matplotlib helpers.
Examples	Executable notebook workflows.
API reference	Exact signatures and docstring reference for spatial, planar, and separator-fitting APIs.
Roadmap	v0.7 stabilization, v0.8 cleanup, v0.9 prescribed measures, v0.10 mixed fitting, 1.0, and future research.

Installation

Most users should install a prebuilt wheel:

pip install pyvoro2

Optional extras:

• pyvoro2[sparse] for optional SciPy sparse-direct static quadratic separator fitting;
• pyvoro2[viz] for 3D py3Dmol and 2D plotting;
• pyvoro2[viz2d] for 2D matplotlib plotting only;
• pyvoro2[all] for the full local notebook, docs, lint, test, and release validation stack.

Source builds require Python 3.10+, a C++17 compiler, CMake 3.20 or newer, and Python development headers. Ninja is recommended because the build backend uses CMake efficiently with it. Typical toolchains are GCC or Clang on Linux, Xcode Command Line Tools on macOS, and Visual Studio Build Tools with the "Desktop development with C++" workload on Windows. These are source-build requirements, not pyvoro2 runtime dependencies.

For an editable runtime-only build:

python -m pip install --upgrade pip
python -m pip install -e .

For local repository development and all validation tools:

python -m pip install --upgrade pip
python -m pip install -e ".[all]"

See Contributing for platform notes and clean-environment verification.

Testing

The default deterministic suite is:

pip install -e ".[test]"
pytest -q

Additional opt-in groups:

# Randomized property/fuzz checks
pytest -m fuzz --fuzz-n 100

# Independent wrapper cross-checks; requires pyvoro
pip install pyvoro
pytest -m pyvoro --fuzz-n 100

For a complete local publishability pass:

python tools/release_check.py

Project status and support

pyvoro2 is currently beta. v0.7.0 is the current transition release, distributed through the v0.7.0 Git tag and PyPI, and contains the common forward/result contract and preferred separator API. The archived v0.6.3 release remains the software baseline cited by the separator-inverse manuscript. No GitHub Release or Zenodo archive was created for v0.7.0; v0.8 removes the bounded compatibility layer and is intended to be the next full GitHub/Zenodo archival release before new inverse families begin in v0.9. The archived v0.7 development plan records the delivered scope, accepted decisions, qualification evidence, and deferrals.

Reproducible bugs and focused feature proposals are welcome through GitHub issues. Development is currently led by one maintainer, so support is best-effort. Contribution and decision policies are described in CONTRIBUTING.md.

AI-assisted development

The project has used the latest Chat and Codex models available at the time of development for planning, implementation support, testing, and documentation. The maintainer reviews and validates all integrated changes and remains responsible for the software and scientific claims.

See AI-assisted development for details.

License

• pyvoro2-authored code is LGPLv3+ starting with version 0.6.0;
• versions before 0.6.0 were released under MIT;
• vendored Voro++ code remains under its upstream license.
